https://github.com/alibaba/spring-cloud-alibaba/wiki/版本说明#组件版本关系
1 单机
nameserver默认端口：9876
rocketmq默认端口：10911
路径：/usr/local/soft
1.1 基于Binary搭建
1.1.1 下载
官网：http://rocketmq.apache.org/
1
2
| cd /usr/local/soft
wget https://archive.apache.org/dist/rocketmq/4.9.4/rocketmq-all-4.9.4-bin-release.zip
|
1.1.2 解压
解压二进制包
1
2
| unzip rocketmq-all-4.9.4-bin-release.zip
mv rocketmq-all-4.9.4-bin-release rocketmq
|
创建数据存储目录
1
2
| mkdir -p /usr/local/soft/rocketmq/store/broker-a /usr/local/soft/rocketmq/store/broker-a/consumequeue /usr/local/soft/rocketmq/store/broker-a/commitlog /usr/local/soft/rocketmq/store/broker-a/index
/usr/local/soft/rocketmq/broker-a/logs
|
1.1.3 修改配置文件
1
2
| cd /usr/local/soft/rocketmq/conf
vim broker.conf
|
增加内容
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
|
listenPort=10911
autoCreateTopicEnable=true
autoCreateSubscriptionGroup=true
namesrvAddr=localhost:9876
storePathRootDir=/usr/local/soft/rocketmq/store/broker-a
storePathCommitLog=/usr/local/soft/rocketmq/store/broker-a/commitlog
storePathConsumeQueue=/usr/local/soft/rocketmq/store/broker-a/consumequeue
storePathIndex=/usr/local/soft/rocketmq/store/broker-a/index
storeCheckpoint=/usr/local/soft/rocketmq/store/broker-a/checkpoint
abortFile=/usr/local/soft/rocketmq/store/broker-a/abort
|
在虚拟机中有可能因为内存不够而启动失败，修改bin目录下的runbroker.sh 和 runserver.sh 文件，比如把8g 4g 改成512m， 4g 2g改成256m
1.1.4 启动
1
2
| nohup sh mqnamesrv &
nohup sh mqbroker -c /usr/local/soft/rocketmq/conf/broker.conf -n localhost:9876 &
|
验证是否启动成功，同时可以观察一下10911端口是否被占用
1
2
3
4
5
6
7
8
| tail -f nohup.out
jps -l
lsof -i:9876
netstat -ano | grep "9876"
lsof -i:10911
netstat -ano | grep "10911"
|
1.1.5 避坑
- 网卡问题踩坑解决方案
如果centos上有多个网卡，此时broker使用的ip地址可能不是自己想要的，可以给broker设置对应的ip地址，在conf/broker.conf中进行设置，最后一行加上 brokerIP1=192.168.1.8，然后停止broker后再启动： nohup sh bin/mqbroker -c conf/broker.conf -n localhost:9876 &
1.1.6 关闭服务
1
2
3
4
| cd /usr/local/soft/rocketmq/bin
sh mqshutdown namesrv
sh mqshutdown broker
|
1.1.7 Dashboard
（1）下载rocketmq-dashboard源码并解压 下载链接：https://github.com/apache/rocketmq-dashboard
（2）进入源码的resources目录
1
| cd rocketmq-dashboard/src/main/resources/
|
（3）修改application.yml文件
（4）回到rocketmq-dashboard的根目录，执行maven打包命令
（5）进入rocketmq-dashboard的target目录，找到打包好的jar包，启动该jar包
1
2
3
| nohup java -jar rocketmq-dashboard-1.0.1-SNAPSHOT.jar &
tail -f nohup.out
lsof -i:18080
|
（6）通过浏览器访问
1.2 基于Source搭建
1.2.1 源码准备
（1）解压源码包
（2）来到源码根目录，打开terminal，使用mvn构建一下
（3）将源码导入到idea中
（4）将distribution中的conf文件夹复制到根目录下
1.2.2 启动NameServer

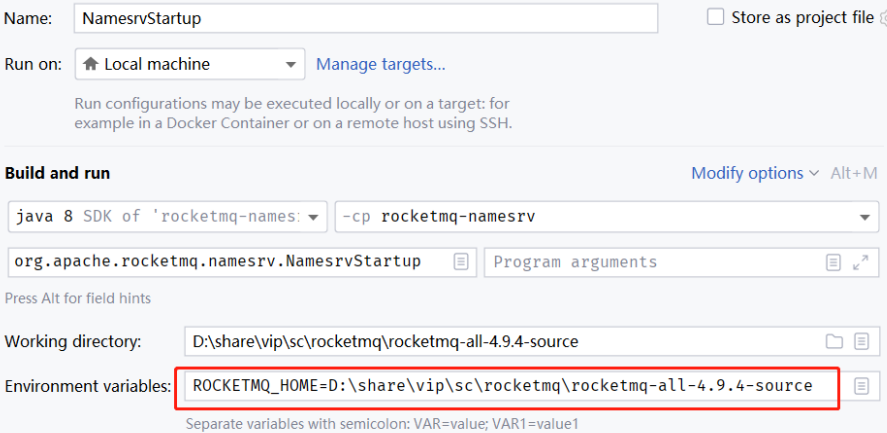

（1）配置启动参数
（2）通过NamesrvStartup#main方法启动
（3）查看端口监听
1
| netstat -ano | findstr "9876"
|
1.2.3 启动Broker
（1）修改conf文件夹下的broker.conf配置
1
2
3
4
5
6
7
8
9
10
11
12
13
| brokerClusterName = DefaultCluster
brokerName = broker-a
brokerId = 0
namesrvAddr=localhost:9876
deleteWhen = 04
brokerRole = ASYNC_MASTER
flushDiskType = ASYNC_FLUSH
autoCreateTopicEnable=true
storePathRootDir=D:\\share\\vip\\sc\\rocketmq\\store
storePathCommitLog=D:\\share\\vip\\sc\\rocketmq\\store\\commitlog
storePathConsumeQueue=D:\\share\\vip\\sc\\rocketmq\\store\\consumequeue
storePathIndex=D:\\share\\vip\\sc\\rocketmq\\store\\index
storeCheckpoint=D:\\share\\vip\\sc\\rocketmq\\store\\checkpoint
|

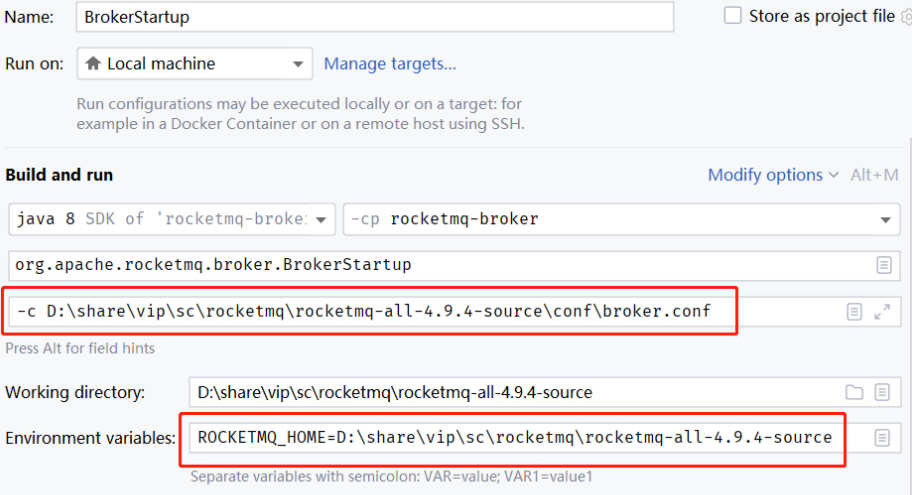

（2）配置启动参数
（3）通过BrokerStartup#main启动Broker，观察控制台打印信息
（4）查看端口监听
1
| netstat -ano | findstr "10911"
|
1.2.4 Dashboard
（1）下载rocketmq-dashboard源码并解压 下载链接：https://github.com/apache/rocketmq-dashboard
（2）进入源码的resources目录 cd rocketmq-dashboard/src/main/resources/

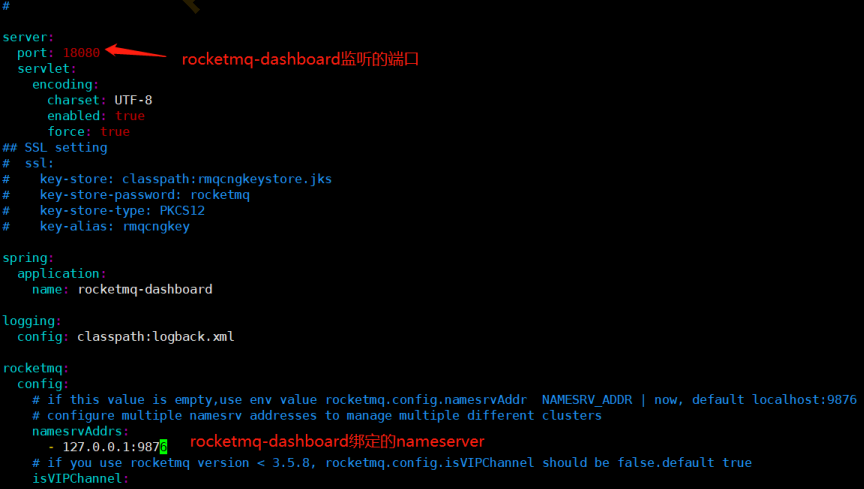

（3）修改application.yml文件
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
| server:
port: 18080
servlet:
encoding:
charset: UTF-8
enabled: true
force: true
spring:
application:
name: rocketmq-dashboard
logging:
config: classpath:logback.xml
rocketmq:
config:
namesrvAddrs:
-127.0.0.1:9876
|
（4）打开App类，启动
（5）查看端口监听
（6）通过浏览器访问rocketmq-dashboard

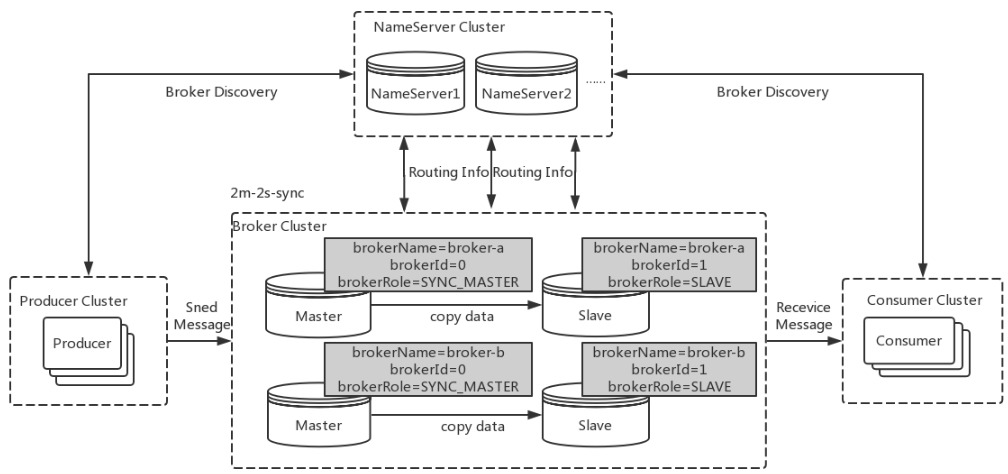

2 集群
二主二从异步集群部署
2.1 节点规划
第一台机器 192.168.44.163，端口规划：
9876 NameServer1
10910 BrokerA-master
10921 BrokerB-slave
第二台机器 192.168.44.164，端口规划：
9876 NameServer2
10920 BrokerB-master
10911 BrokerA-slave
2.2 下载解压
从官网首页最新发布版本进入下载地址 http://rocketmq.apache.org/
1
2
| unzip rocketmq-all-4.7.1-bin-release.zip
mv rocketmq-all-4.7.1-bin-release rocketmq
|
在两台机器上都下载、解压好。
在rocketmq/conf目录下，有三种建议配置模式：
2m-2s-async(2主2从异步) —— 本文采用这种
2m-2s-sync (2主2从同步)
2m-noslave (2主)
现在需要修改两台机器上2m-2s-async这个目录中的文件。配置文件修改之前先备份。
2.3 配置第一台机器
192.168.44.163的两个配置文件
（1）broker-a.properties
1
2
| cd /usr/local/soft/rocketmq/conf/2m-2s-async
vim broker-a.properties
|
修改的内容（名字自定义，保持一致，否则不能组成集群）
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
| brokerClusterName=test-cluster
listenPort=10910
autoCreateTopicEnable=true
autoCreateSubscriptionGroup=true
namesrvAddr=192.168.44.163:9876;192.168.44.164:9876
storePathRootDir=/usr/local/soft/rocketmq/store/broker-a
storePathCommitLog=/usr/local/soft/rocketmq/store/broker-a/commitlog
storePathConsumeQueue=/usr/local/soft/rocketmq/store/broker-a/consumequeue
storePathIndex=/usr/local/soft/rocketmq/store/broker-a/index
storeCheckpoint=/usr/local/soft/rocketmq/store/checkpoint
abortFile=/usr/local/soft/rocketmq/store/abort
|
（2）broker-b-s.properties
1
| vim broker-b-s.properties
|
修改的内容（名字自定义，保持一致，否则不能组成集群）
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
| brokerClusterName=test-cluster
listenPort=10921
autoCreateTopicEnable=true
autoCreateSubscriptionGroup=true
namesrvAddr=192.168.44.163:9876;192.168.44.164:9876
storePathRootDir=/usr/local/soft/rocketmq/store/broker-b-s
storePathCommitLog=/usr/local/soft/rocketmq/store/broker-b-s/commitlog
storePathConsumeQueue=/usr/local/soft/rocketmq/store/broker-b-s/consumequeue
storePathIndex=/usr/local/soft/rocketmq/store/broker-b-s/index
storeCheckpoint=/usr/local/soft/rocketmq/store/checkpoint
abortFile=/usr/local/soft/rocketmq/store/abort
|
2.4 配置第二台机器
192.168.44.164的两个配置文件，修改的内容基本一致，主要是注意一下端口号、路径名。
（1）broker-b.properties
1
2
| cd /usr/local/soft/rocketmq/conf/2m-2s-async
vim broker-b.properties
|
修改的内容（名字自定义，保持一致，否则不能组成集群）
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
| brokerClusterName=test-cluster
listenPort=10920
autoCreateTopicEnable=true
autoCreateSubscriptionGroup=true
namesrvAddr=192.168.44.163:9876;192.168.44.164:9876
storePathRootDir=/usr/local/soft/rocketmq/store/broker-b
storePathCommitLog=/usr/local/soft/rocketmq/store/broker-b/commitlog
storePathConsumeQueue=/usr/local/soft/rocketmq/store/broker-b/consumequeue
storePathIndex=/usr/local/soft/rocketmq/store/broker-b/index
storeCheckpoint=/usr/local/soft/rocketmq/store/checkpoint
abortFile=/usr/local/soft/rocketmq/store/abort
|
（2）broker-a-s.properties
1
2
| cd /usr/local/soft/rocketmq/conf/2m-2s-async
vim broker-a-s.properties
|
修改的内容（名字自定义，保持一致，否则不能组成集群）
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
| brokerClusterName=test-cluster
listenPort=10911
autoCreateTopicEnable=true
autoCreateSubscriptionGroup=true
namesrvAddr=192.168.44.163:9876;192.168.44.164:9876
storePathRootDir=/usr/local/soft/rocketmq/store/broker-a-s
storePathCommitLog=/usr/local/soft/rocketmq/store/broker-a-s/commitlog
storePathConsumeQueue=/usr/local/soft/rocketmq/store/broker-a-s/consumequeue
storePathIndex=/usr/local/soft/rocketmq/store/broker-a-s/index
storeCheckpoint=/usr/local/soft/rocketmq/store/checkpoint
abortFile=/usr/local/soft/rocketmq/store/abort
|
2.5 创建数据目录
第一台机器163执行（只需要执行一次）
1
| mkdir -p /usr/local/soft/rocketmq/store/broker-a /usr/local/soft/rocketmq/store/broker-a/consumequeue /usr/local/soft/rocketmq/store/broker-a/commitlog /usr/local/soft/rocketmq/store/broker-a/index /usr/local/soft/rocketmq/logs /usr/local/soft/rocketmq/store/broker-b-s /usr/local/soft/rocketmq/store/broker-b-s/consumequeue /usr/local/soft/rocketmq/store/broker-b-s/commitlog /usr/local/soft/rocketmq/store/broker-b-s/index
|
第二台机器164执行（只需要执行一次）
1
| mkdir -p /usr/local/soft/rocketmq/store/broker-a-s /usr/local/soft/rocketmq/store/broker-a-s/consumequeue /usr/local/soft/rocketmq/store/broker-a-s/commitlog /usr/local/soft/rocketmq/store/broker-a-s/index /usr/local/soft/rocketmq/logs /usr/local/soft/rocketmq/store/broker-b /usr/local/soft/rocketmq/store/broker-b/consumequeue /usr/local/soft/rocketmq/store/broker-b/commitlog /usr/local/soft/rocketmq/store/broker-b/index
|
2.6 启动两个NameServer
1
2
3
4
5
|
nohup sh /usr/local/soft/rocketmq/bin/mqnamesrv >/usr/local/soft/rocketmq/logs/mqnamesrv.log 2>&1 &
nohup sh /usr/local/soft/rocketmq/bin/mqnamesrv >/usr/local/soft/rocketmq/logs/mqnamesrv.log 2>&1 &
|
2.7 启动Broker
1、启动节点1，163的 broker-a-master，在163上面执行
1
| nohup sh /usr/local/soft/rocketmq/bin/mqbroker -c /usr/local/soft/rocketmq/conf/2m-2s-async/broker-a.properties > /usr/local/soft/rocketmq/logs/broker-a.log 2>&1 &
|
在虚拟机中可能由于内存不够导致无法启动，改动
1
2
3
4
| vim /usr/local/soft/rocketmq/bin/runbroker.sh
JAVA_OPT="${JAVA_OPT} -server -Xms512m -Xmx512m -Xmn256m"
|
2、启动节点2，164的broker-a-s，在164上面执行
1
| nohup sh /usr/local/soft/rocketmq/bin/mqbroker -c /usr/local/soft/rocketmq/conf/2m-2s-async/broker-a-s.properties > /usr/local/soft/rocketmq/logs/broker-a-s.log 2>&1 &
|
3、启动节点2，164的 broker-b-master，在164上面执行
1
| nohup sh /usr/local/soft/rocketmq/bin/mqbroker -c /usr/local/soft/rocketmq/conf/2m-2s-async/broker-b.properties > /usr/local/soft/rocketmq/logs/broker-b.log 2>&1 &
|
4、启动节点1，163的broker-b-s，在163上面执行
1
| nohup sh /usr/local/soft/rocketmq/bin/mqbroker -c /usr/local/soft/rocketmq/conf/2m-2s-async/broker-b-s.properties > /usr/local/soft/rocketmq/logs/broker-b-s.log 2>&1 &
|
查看端口启动状态：
netstat -an|grep 109
第一台机器 192.168.44.163，端口规划：
9876 NameServer1
10910 BrokerA-master
10921 BrokerB-slave
第二台机器 192.168.44.164，端口规划：
9876 NameServer2
10920 BrokerB-master
10911 BrokerA-slave
3 常用管理命令
https://blog.csdn.net/gwd1154978352/article/details/80829534
