Springboot启动流程

1. 启动方式

@SpringBootApplication
public class Application {
    //方式一
    public static void main(String[] args) {
        SpringApplication.run(Application.class, args);
    }
    //方式二
    public static void main(String[] args) {
        SpringApplication app = new SpringApplication(MySpringConfiguration.class);
        app.run(args);
    }
    //方式三
    public static void main(String[] args) {
        new SpringApplicationBuilder()
            .sources(Parent.class)
            .child(Application.class)
            .run(args);
    }
}

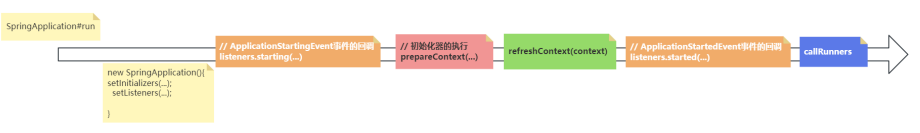

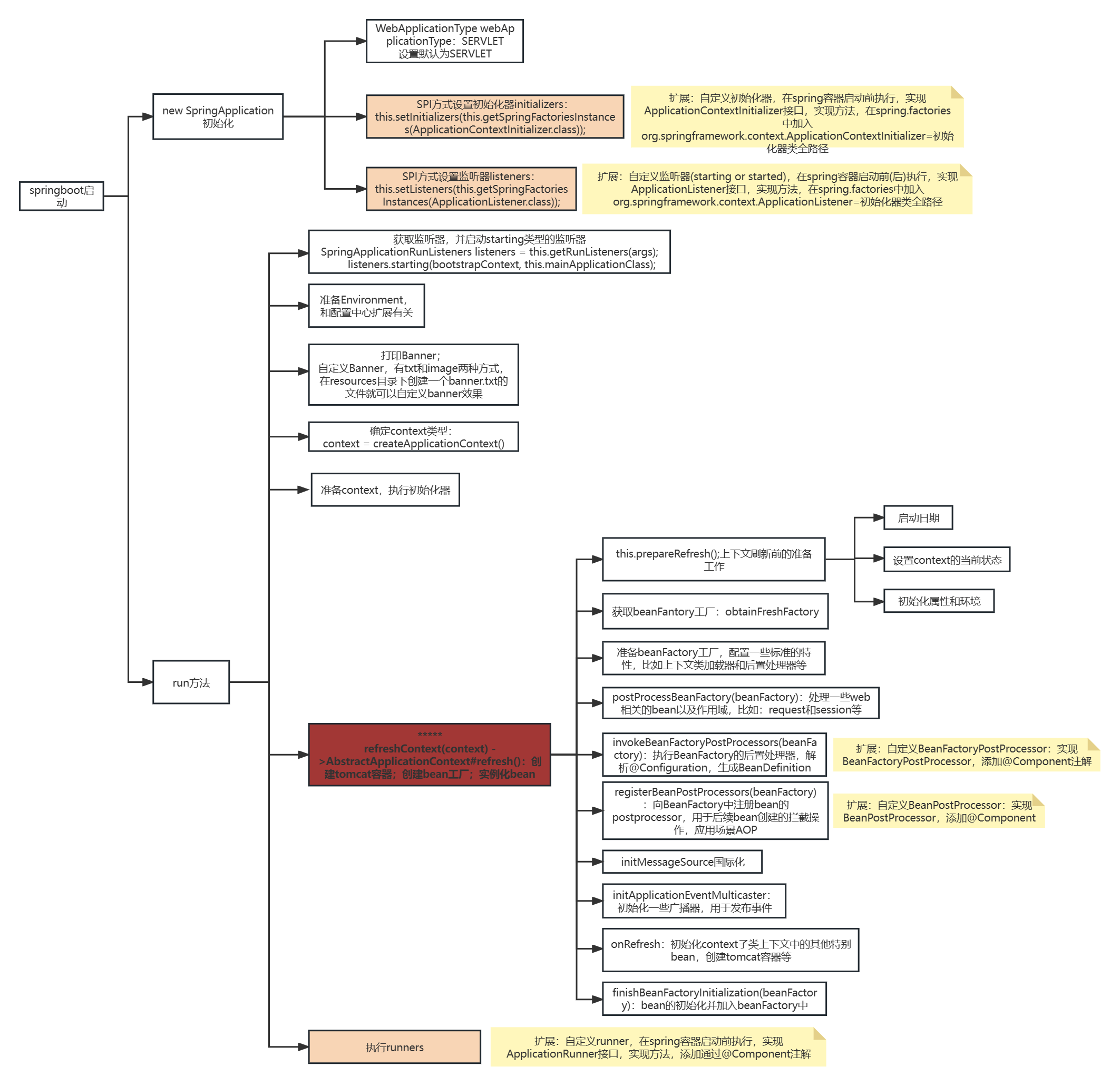

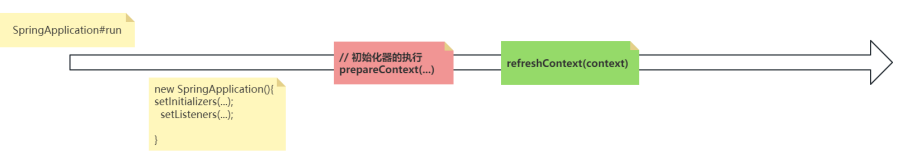

2. 启动流程概览

3. 启动流程详解

3.1 new Application初始化

3.1.1 initializers初始化器

​ SPI方式设置初始化器initializers：this.setInitializers(this.getSpringFactoriesInstances(ApplicationContextInitializer.class));

​ 扩展：自定义初始化器，在spring容器启动前执行，实现ApplicationContextInitializer接口，实现方法，在spring.factories中加入org.springframework.context.ApplicationContextInitializer=初始化器类全路径

//springboot源码
@FunctionalInterface
public interface ApplicationContextInitializer<C extends
ConfigurableApplicationContext> {
	/**
	* Initialize the given application context.
	* @param applicationContext the application to configure
	*/
	void initialize(C applicationContext);
}

//自定义初始化器
public class MyInitializer implements ApplicationContextInitializer {
	@Override
	public void initialize(ConfigurableApplicationContext applicationContext) {
		System.out.println("自定义初始化器执行...");
		ConfigurableEnvironment environment = applicationContext.getEnvironment();
		Map map = new HashMap<>();
		map.put("name","jack");
		environment.getPropertySources().addLast(new MapPropertySource("myInitializer",map));
		System.out.println("myInitializer execute, and add some property");
	}
}

//通过SPI机制将自定义初始化器交给list集合initializers
org.springframework.context.ApplicationContextInitializer=com.intializer.MyInitializer

初始化器的回调 SpringApplication#run()->prepareContext(..)–>applyInitializers(context)

protected void applyInitializers(ConfigurableApplicationContext context) {
	for (ApplicationContextInitializer initializer : getInitializers()) {
		Class<?> requiredType = GenericTypeResolver.resolveTypeArgument(initializer.getClass(),ApplicationContextInitializer.class);
		Assert.isInstanceOf(requiredType, context, "Unable to call initializer.");
		initializer.initialize(context);
	}
}

3.1.2 listeners监听器

SPI方式设置监听器listeners：this.setListeners(this.getSpringFactoriesInstances(ApplicationListener.class));

​ 扩展：自定义监听器(starting-servlet启动前执行 or started-servlet启动后执行)，在spring容器启动前(后)执行，实现ApplicationListener接口，实现方法，在spring.factories中加入org.springframework.context.ApplicationListener=初始化器类全路径

//自定义监听器
//容器启动前调用
public class MyStartingListener implements ApplicationListener<ApplicationStartingEvent> {
	@Override
	public void onApplicationEvent(ApplicationStartingEvent event) {
		System.out.println("myStartingListener 容器正在启动...");
	}
}
//容器启动完成调用
public class MyStartedListener implements ApplicationListener<ApplicationStartedEvent> {
	@Override
	public void onApplicationEvent(ApplicationStartedEvent event) {
		System.out.println("myStartedListener 容器启动完成...");
	}
}

//通过SPI机制将自定义初始化器交给list集合listeners
org.springframework.context.ApplicationListener=\
com.jack.springbootmybatis.listener.MyStartingListener,\
com.jack.springbootmybatis.listener.MyStartedListener

3.2 run方法

1. 获取监听器，并启动starting类型的监听器

   SpringApplicationRunListeners listeners = this.getRunListeners(args);
   listeners.starting(bootstrapContext, this.mainApplicationClass);

2. 准备Environment，和配置中心扩展有关

3. 打印Banner；自定义Banner，有txt和image两种方式，在resources目录下创建一个banner.txt的文件就可以自定义banner效果

4. 确定context类型：context = createApplicationContext()

5. prepareContext，执行初始化器initializers

6. refreshContext(context) ->AbstractApplicationContext#refresh()：创建tomcat容器；创建bean工厂；实例化bean

（1）this.prepareRefresh();上下文刷新前的准备工作：启动日期，设置context的当前状态，初始化属性和环境

（2）获取beanFantory工厂：obtainFreshFactory

（3）准备beanFactory工厂，配置一些标准的特性，比如上下文类加载器和后置处理器等

（4）postProcessBeanFactory(beanFactory)：处理一些web相关的bean以及作用域，比如：request和session等

（5）invokeBeanFactoryPostProcessors(beanFactory)：执行BeanFactory的后置处理器，解析@Configuration，生成BeanDefinition

​ 扩展：自定义BeanFactoryPostProcessor：实现BeanFactoryPostProcessor，添加@Component注解

//自定义BeanFactoryPostProcessor
@Component
public class JackBeanFactoryPostProcessor implements BeanFactoryPostProcessor {
	@Override
	public void postProcessBeanFactory(ConfigurableListableBeanFactorybeanFactory) throws BeansException {
		Arrays.asList(beanFactory.getBeanDefinitionNames()).forEach(beanDefinitionName ->
			System.out.println(beanDefinitionName));
			System.out.println("JackBeanFactoryPostProcessor...");
	}
}

（6）registerBeanPostProcessors(beanFactory)：向BeanFactory中注册bean的postprocessor，用于后续bean创建的拦截操作，应用场景AOP

​ 扩展：自定义BeanPostProcessor：实现BeanPostProcessor，添加@Component

//自定义BeanPostProcessor
@Component
public class JackBeanPostProcessor implements BeanPostProcessor {
	@Override
	public Object postProcessBeforeInitialization(Object bean, String beanName) throws BeansException {
		if(beanName.equals("userController")){
			System.out.println("找到了userController: "+bean);
		}
		return null;
	}
}

（7）initMessageSource国际化

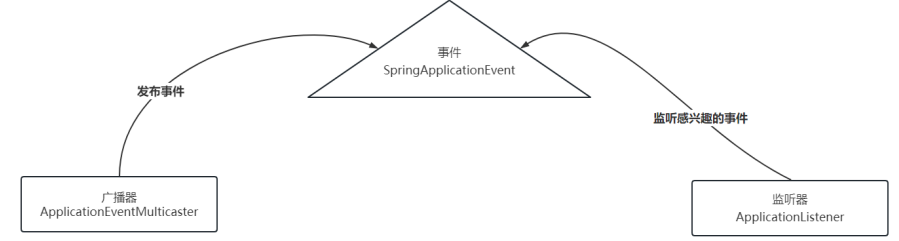

（8）initApplicationEventMulticaster：初始化一些广播器，用于发布事件

（9）onRefresh：初始化context子类上下文中的其他特别bean，创建tomcat容器等

（10）finishBeanFactoryInitialization(beanFactory)：bean的初始化并加入beanFactory中

​ 1-beanFactory.preInstantiateSingletons()

​ 2-获取到所有BeanDefinition的名称 List beanNames = new ArrayList<>(this.beanDefinitionNames)

​ 3-判断当前的bean是否为factorybean if (isFactoryBean(beanName))

​ 4-来到else部分的getBean(beanName)方法

​ 5-判断是否可以从缓存中获取到bean或者父容器中获取：getSingleton(beanName)以及 getParentBeanFactory()

​ 6-getSingleton(String beanName,Object Factory singleFactory)，调用singleFactory#getObject 方法时，会来到其实现类createBean(beanName,mbd,args)

​ 7-AbstractAutowireCapableBeanFactory#doCreateBean()

​ 8-选择无参构造函数创建Bean：

7. 执行runners

   扩展：自定义runner，在spring容器启动前执行，实现ApplicationRunner接口，实现方法，添加通过@Component注解

//自定义Runner
@Component
public class MyApplicationRunner implements ApplicationRunner {
	@Override
	public void run(ApplicationArguments args) throws Exception {
		System.out.println("MyApplicationRunner...");
	}
}
